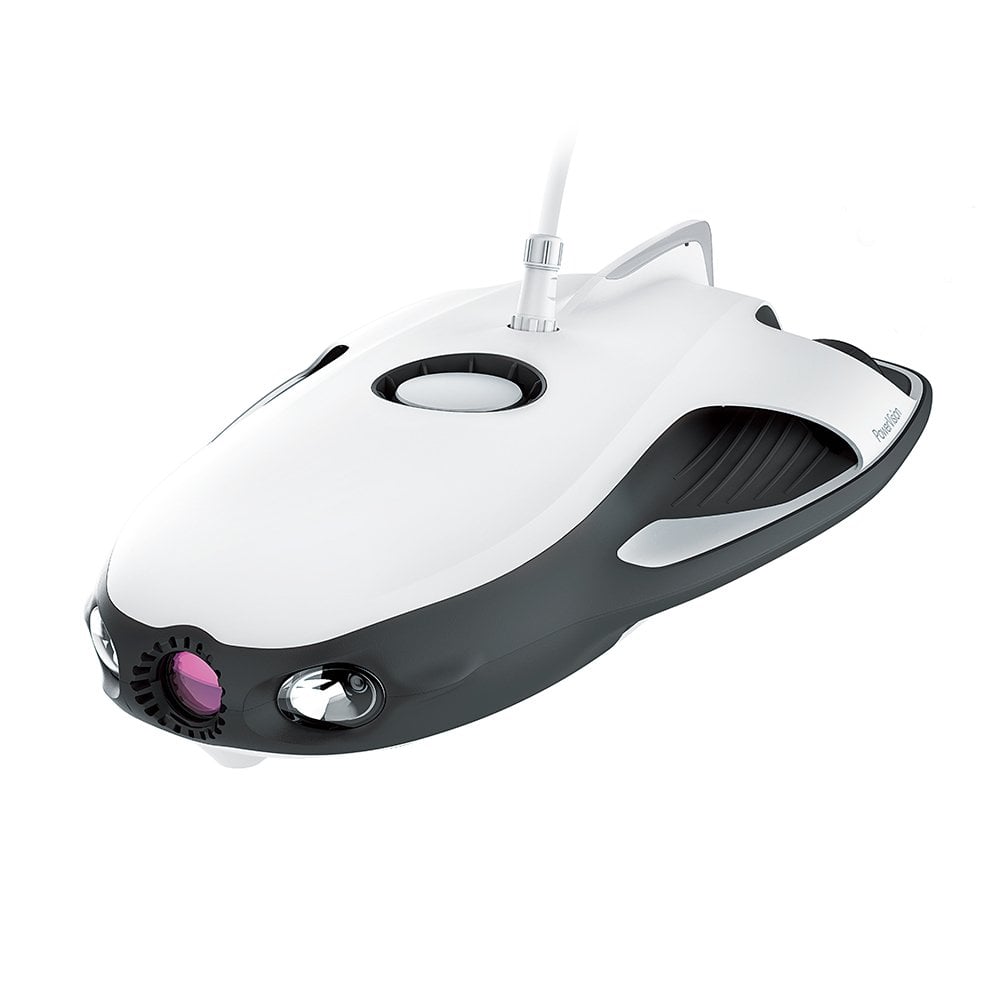

PowerRay
Dimensions465x270x126mm
Weight~3.8kg （In air）
Operating Temperature32° ~104° F （0~40℃）
Depth Capacity30m
Depth Accuracy±10cm
Max Cruise Speed3Kn（1.5m/s）（Still water）
Max Sailing Time4h （Still water,light use）1.5h（Still water,L speed mode cruise）0.5h（Still water,H speed mode racing）
Charging Time≤2.5h
Thruster Configuration3 thrusters （2 horizontal ,1 vertical）
Battery94.72Wh（14.8V 6400mAh) LiPo
Battery Cycle Time≥100
Camera
LensFOV 95°（In air） F2.8
Sensor1/2.3 inch CMOS，Effective pixels:12M
Image Size12M: 4000×30004:3 (default)
8M:3840×2160 16:9
5M:2560×1920 4:3
Video Resolution4K： 3840×2160 25fps(default)
1440P：2560×1440 50fps
FHD：1920×1080 30/60fps
ISOAuto / 100 / 200 / 400 / 800 / 1600
Burst Shooting1/3/5 frames
Storage32G/64G
Lights
Power3Wx2
Brightness450 lumens（with dimming control）
Color Temperature6500K
Live View
Live View Quality720P 25fps/1080P 30fps
Max Transmission Distance≥10m
Operating Frequency2.4~2.483GHz
EIRP≤20dbm
Latency≤300ms
Fishfinder
Operating Frequency125KHz
Track Angle30°
Track Depth0.6-40m
Operating Temperature0~40℃
WirelessWIFI 2.4~2.483GHz
EIRP≤20dbm
Wi-Fi range90m
Resolution0.1m
Operating Time≥2h
Charging Time≤3h
Remote Controller
Operating Frequency2.4~2.483GHz
EIRP≤20dbm
Max Transmission Distance10m
Battery3000mAh LiPo 1S
Operating Time≥20h
Charging Time≤3.5h
Operating Temperature0~40℃
Supported Mobile Device Sizelength: 41~175mm
Base Sation
Operating Frequency2.4~2.483GHz
EIRP≤20dbm
Battery3000mAh LiPo 1S
Operating Time≥3h
Charging Time≤2.5h
Communication Cable
Diameter4.2mm
Length50m/70m
Working Strength30kg
Charger
InputAC100-240V 50/60Hz 1.6A
Output116.8V/4.5A(M16 waterproof connector）
Output25.0V/2.0A（M12 waterproof connector）
Output35.0V/2.0A(Micro USB)
Output45.0V/0.2A(USB)
Bait Drop
Weight8g
Supported Weight≤120g（in the water）
FOV100°
VR Goggle
IPD53~77mm
Supported Mobile Device Size4.7’~5.5′
Wear Glasssupport
App
iOSiOS 8.0 or later
AndroidAndroid 4.2 or later
Supported Mobile Device
